| ชื่อแบรนด์: | HangTuo |
| หมายเลขรุ่น: | VE7" |
| ปริมาณการสั่งซื้อขั้นต่ำ: | 1 ชิ้น |
| ราคา: | USD 100~1600/ pc |
| เวลาการส่งมอบ: | 15~45 วัน |
| เงื่อนไขการชำระเงิน: | แอล/C, T/T, เวสเทิร์นยูเนี่ยน |
High Reliability Slewing Drive Solution for Solar Tracking Applications

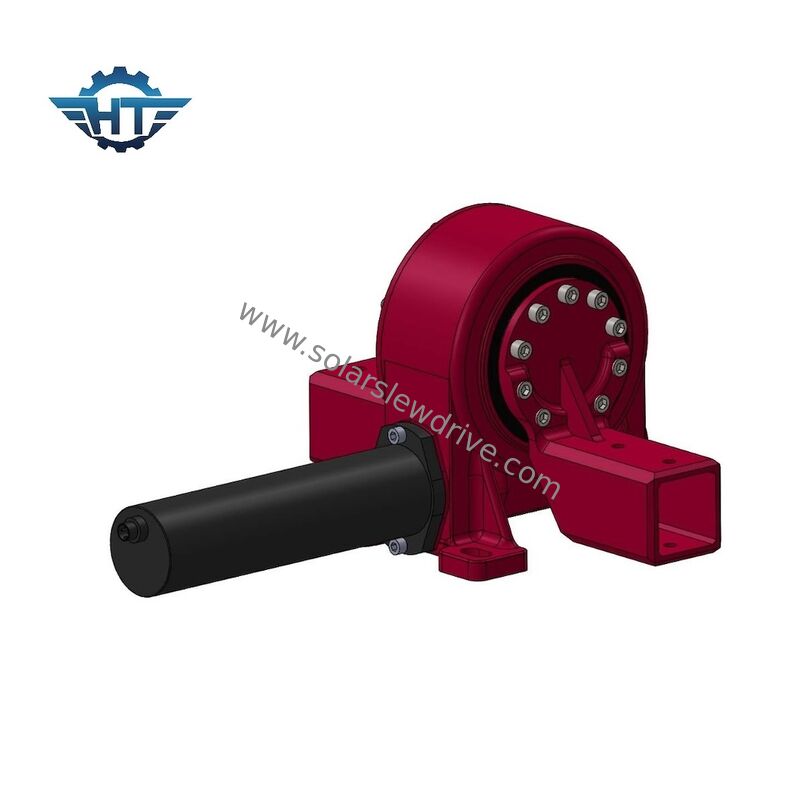

Hangtuo single axis slew drive gearbox is specially designed for solar tracking systems requiring reliable rotation performance, long service life, and strong environmental resistance. Featuring a fully enclosed IP66 protection housing and worm gear transmission structure, our slewing drives provide excellent protection against dust, rain, sand, and harsh outdoor conditions.
With compact design, high torque output, and built-in self-locking capability, Hangtuo slew drive gearboxes help solar trackers achieve stable panel positioning while reducing maintenance requirements and improving system reliability.
VE Model Slewing Drive Datasheet
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | Yes | 251 |
Why Choose Hangtuo Slew Drive Gearbox for Solar Trackers?
IP66 Fully Enclosed Protection for Outdoor Environments
Solar trackers operate in challenging environments including desert areas, coastal regions, and high-humidity locations. Hangtuo slew drives adopt a sealed enclosure design to prevent the ingress of dust and water, ensuring reliable operation under severe weather conditions.
Worm Gear Transmission with Self-Locking Function
The worm gear and worm wheel structure provides multiple tooth engagement, delivering high torque capacity and stable transmission performance.
The integrated self-locking function helps prevent reverse movement caused by external loads such as wind force, improving the safety and stability of solar tracking systems.
Benefits include:
Compact Design with High Torque Density
Hangtuo VE series slewing drives offer a compact structure while delivering high output torque, making them suitable for single-axis solar trackers where installation space and reliability are critical factors.
Compared with traditional drive solutions, our slew drive gearbox provides:
Higher torque-to-weight ratio Easier installation Lower system complexity Reduced operation and maintenance costs
VE Series Slewing Drive Parameters
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | Yes | 251 |
Solar Tracker Applications
Hangtuo VE series slew drive gearboxes are widely used in:
Photovoltaic Solar Tracking Systems
Designed for single-axis solar trackers, our slew drives provide precise and reliable panel positioning to improve solar energy harvesting efficiency.
Typical applications:
Other Industrial Applications
Beyond solar tracking, Hangtuo slewing drives are also used in:
Customized Slew Drive Solutions Available
Every application has different requirements regarding torque, speed, mounting dimensions, corrosion protection, and control systems.
Hangtuo provides OEM and customized slewing drive solutions, including:
Our engineering team can develop optimized slew drive solutions according to your mechanical design and operating conditions.
